Rasters to Cells

  • For rasters, cells returns Dict{Cell, Vector{T}} where T is the eltype of the raster.
  • By default, missing values from the raster will not be included. Use dropmissing=false to include them.
using HexEarth, GeoMakie, CairoMakie, Rasters, RasterDataSources, ArchGDAL

r = Raster(getraster(WorldClim{Elevation}).elev)

dict = cells(r, 2)

# remove hexagons overlapping 180° longitude to avoid plotting
# horizontal "stripes" across the map
dict2 = filter(kv -> !HexEarth.crosses_lon180(kv[1]), dict)

poly(collect(keys(dict2)), color=maximum.(values(dict2)), axis=(;type = GeoAxis))

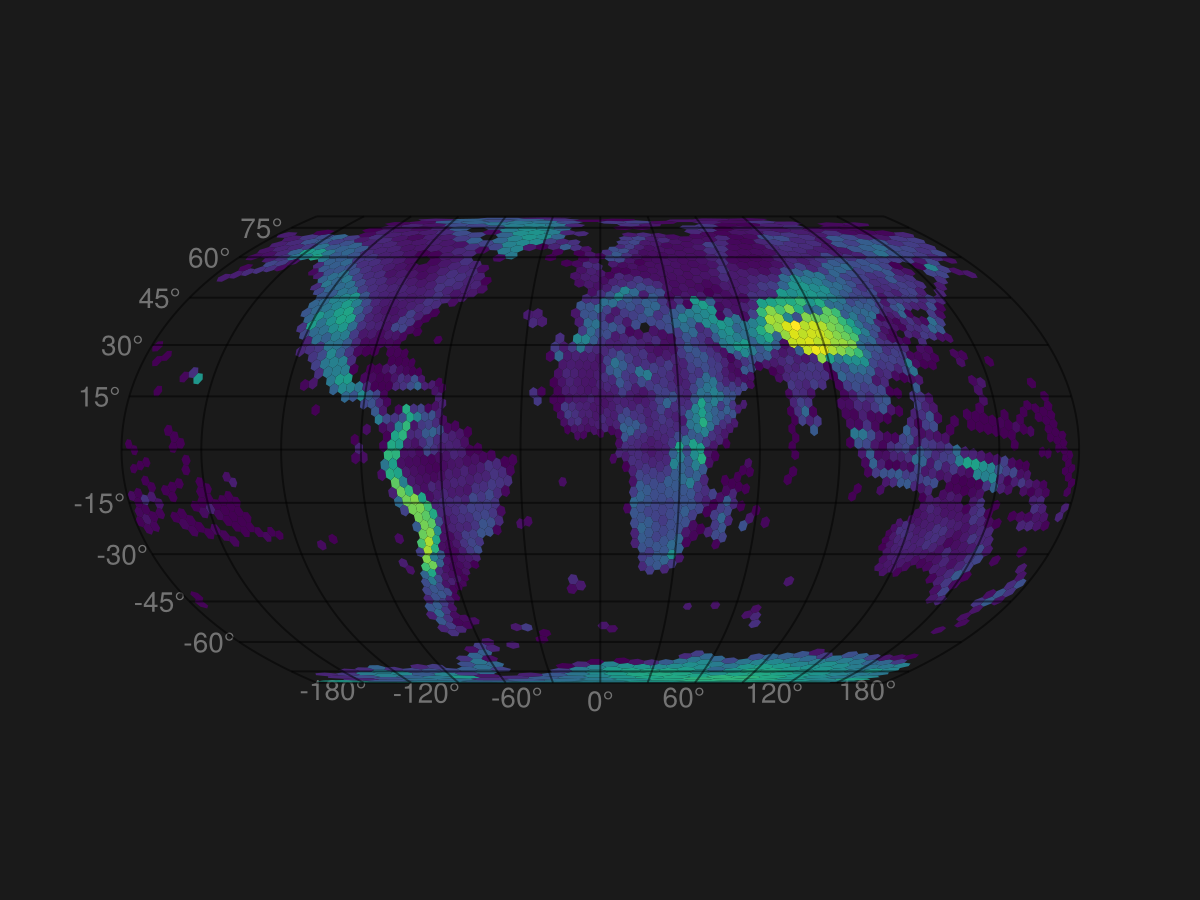

Example block output
